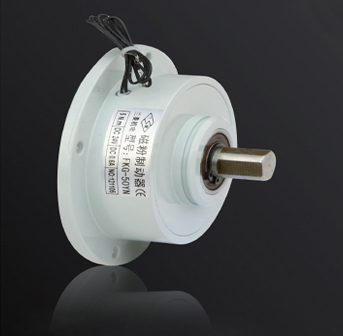

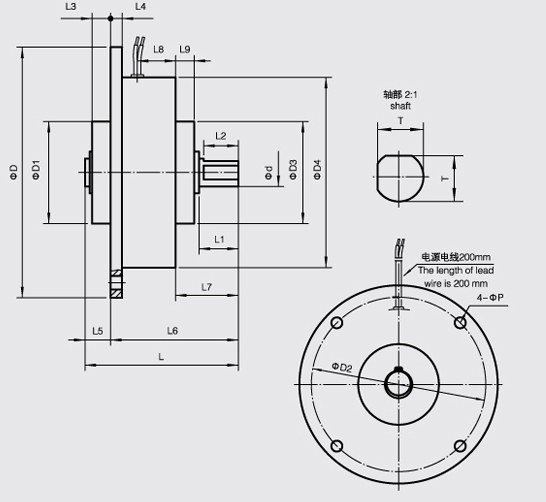

FKG-YN micro magnetic power brake Hits：20027 AddTime：2021/9/6 22:58:53 FKG - YN type (support) shaft coupling and tiny magnetic powder brake Model Rated torque(N•m) Excitation coil Allowable rotational speed(r/min) Flywheel moment J(kg cm2) Slip power （W） Weight（Kg） Current(A) Power (W) Response time (s) FKG-5YN 0.5 0.35 8.4 0.02 1800 9.4×10-3 18 0.4 FKG-10YN 1 0.42 10 0.03 1800 2.75×10-3 20 0.54 FKG-20YN 2 0.50 12 0.04 1800 5.25×10-3 30 0.96 FKG-50YN 5 0.60 14 0.05 1800 1.25×10-3 40 1.3 Model Outline dimension Shaft coupling size The size of center ring Othere size D L d(h7) T L1 L2 D1(g7) D2 L3 L4 L5 P D3 D4 L6 L7 L8 L9 FKG-5YN 70 45 5 4.5 10.5 9 24 60 3 4 5 4.5 24 50 40 14 18 3 FKG-10YN 76 50 7 6.5 12 10 30 66 4 4 7 4.5 36 56 43 17 18 4 FKG-20YN 90 59 9 8.5 15 13 40 80 6 5 9 4.5 40 70 50 21 20 5 FKG-50YN 108 66 15 14 18 16 44 95 8 5 11 6 44 82 55 27 19 8 【Refresh】【Favorites】【Print】 【Close】Previous：FKB-YN/XN magnetic power brake Next：TS-3000 TORQUE SPEED POWER ACQUISITION INSTRUMENT
