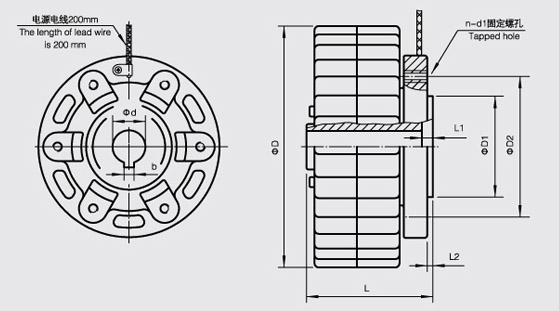

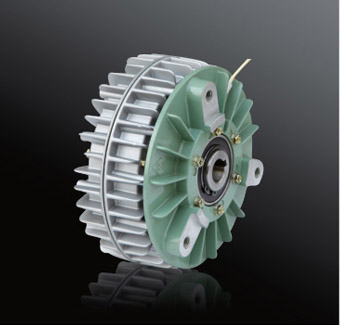

FZ-K/F magnetic power brake Hits：24037 AddTime：2021/9/6 22:49:47 FZ - K/F type support, shell (hollow shaft coupling and rotation) magnetic powder brake Model Rated torque(N•m) Excitation coil Allowable rotational speed (r/min) Slip power （W） Outline dimension Hollow Shaft coupling size The size of center ring Voltage(V) Current(A) D L d(H7) b(P7) L1 L2 Ｄ1(g7) Ｄ2 n-d1×depth FZ6.K/F 6 24 0.3 1800 130 128 68 12 4 4 2 70 80 3-M5×10 FZ12.K/F 12 24 0.39 1800 320 160 88 18 5 2 5 74 100 3-M6×10 FZ25.K/F 25 24 0.73 1800 450 180 98 20 6 5 5 100 140 3-M10×19 FZ25.K/F1 25 24 0.73 1800 450 180 98 20 5 5 5 100 140 3-M10×19 FZ50.K/F 50 24 0.94 1800 700 220 115 30 8 5 5 110 150 3-M10×19 FZ50.K/F1 50 24 0.94 1800 700 220 115 30 7 5 5 110 150 3-M10×19 FZ100.K/F 100 24 1.21 1800 900 275 136 35 10 6 5 120 150 6-M10×22 FZ100.K/F1 100 24 1.21 1800 900 275 136 35 10 6 5 110 150 6-M10×22 FZ200.K/F 200 36 1.9 1000 1900 335 160 45 14 8 6 160 240 6-M10×30 FZ200.K/F1 200 24 1.9 1000 1900 335 160 45 12 8 6 160 240 6-M10×30 FZ400.K/F 400 24 2.2 1000 2600 360 210 50 12 8 6 160 240 6-M10×30 【Refresh】【Favorites】【Print】 【Close】Previous：FX-YS thin magnetic power brake Next：FZ-K magnetic power brake
