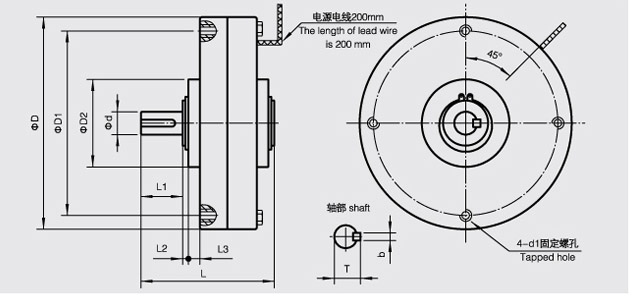

FX-YS thin magnetic power brake Hits：17043 AddTime：2018/10/18 14:09:33 FX - YS (support) shaft coupling and thin magnetic powder brake Model Rated torque (N•m) Excitation coil Allowable rotational speed(r/min) Slip power （W） Flywheel moment J(kg m2) Outline dimension Shaft coupling size The size of center ring Weight （Kg） Voltage(V) Current(A) D L d(h7) b(p7) T(0-0.2) L1 L2 L3 D1 D2(g7) d1×depth FX-2.5YS 25 24 1.1 600 150 3×10-4 139 96 20 6 22.5 36 4 5 129 62 M5×10 4.9 FX-5YS 50 24 1.35 600 200 11×10-4 182 115 25 8 28 43 4.5 8 169 80 M6×10 9.3 FX-10YS 100 24 1.5 600 300 40×10-4 232 149 30 8 33 55 6 10 216 100 M8×12 19.5 【Refresh】【Favorites】【Print】 【Close】Previous：FX-YN/Y thin magnetic power brake Next：FZ-K/F magnetic power brake
