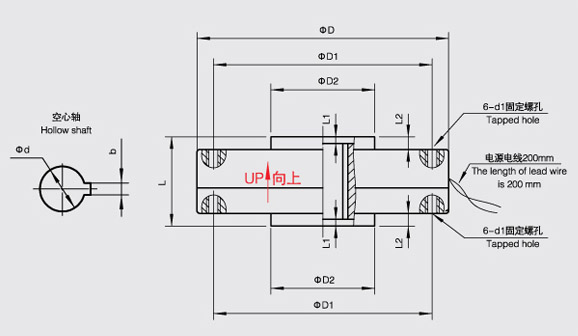

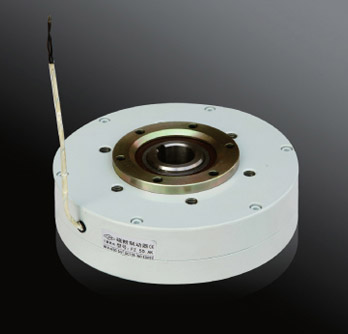

FZ-AK magnetic power brake Hits：20642 AddTime：2021/9/6 22:46:23 FZ - AK type (support, vertical) hollow shaft coupling and magnetic powder brake Model Rated torque(N•m) Excitation coil Allowable rotational speed (r/min) Slip power（KW） Outline dimension Shaft coupling size The size of center ring Voltage(V) Current(A) Self cooling Water cooling D L d(H7) b(F8) L1 L２ D1 D2(g7) d1×depth FZ2.5AK 2.5 24 0.3 400 0.03 / 105 49 12 4 1 8 80 60 M5×8 FZ6.AK 6 24 0.5 400 0.05 / 126 52 12 4 2 8 80 60 M5×8 FZ12.AK 12 24 0.6 400 0.1 / 150 56 16 5 2 8 82 65 M6×8 FZ25.AK 25 24 0.8 400 0.15 1.1 180 62 25 8 2 8 105 90 M6×8 FZ50.AK 50 24 1.0 350 0.2 2 195 66 30 8 2 8 120 100 M10×12 FZ100.AK 100 24 1.5 350 0.3 3 248 85 35 10 2 9 150 120 M10×18 FZ200.AK 200 24 2.0 300 0.45 4 302 102 45 14 4 10 180 150 M12×20 FZ400.AK 400 36 2.5 300 0.6 5 370 116 50 14 5 12 200 160 M12×25 FZ630.AK 630 36 3.0 300 0.8 7 484 144 50 14 5 12 200 160 M12×25 FZ1000.AK 1000 90 4.0 300 1 8 550 169 60 18 5 12 260 185 M12×25 FZ2000.AK 2000 90 5.0 250 1.2 10 700 210 75 20 5 15 300 200 M12×25 FZ5000.AK 5000 90 5.0 200 2 15 920 222 90 25 5 18 420 240 M16×30【Refresh】【Favorites】【Print】 【Close】Previous：Magnetic powder brake-total profile Next：FX-YN/Y thin magnetic power brake
