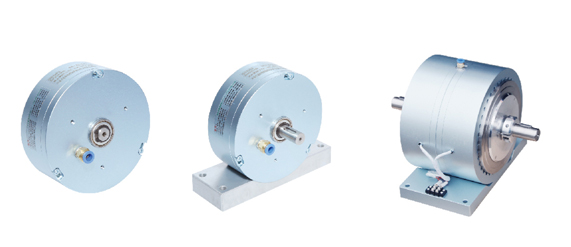

HZ-Q Type air cooling hysteresis brake Hits：14704 AddTime：2021/9/20 22:39:30 Model Rated torque Rated current Voltage Coil resistance (at 25°±10％） Add compressed air No compressed air Moment of inertia Maximum speed Weight 5 minutes continued 5 minutes continued N•m mA VDC Ω（Ohm） watts watts watts watts kg•cm2 rpm Kg Without base HZ-0.3/Q 0.3 390 24 62 200 200 75 20 1.8×10-1 25000 1.35 HZ-0.5/Q 0.5 390 24 62 400 400 120 35 1.8×10-1 25000 1.35 HZ-1/Q 1 400 24 60 800 800 320 80 1.1×100 25000 1.8 HZ-2/Q 2 315 24 76 1000 800 460 115 3.2×100 25000 3.5 HZ-3/Q 3 750 24 32 1300 1100 680 165 6.8×100 20000 5.2 HZ-5/Q 5 750 24 32 2300 2000 1000 200 1.3×101 15000 9.6 HZ-6/Q 6 750 24 32 2300 2000 1000 200 1.4×101 15000 9.6 HZ-10/Q 10 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 HZ-12/Q 12 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 HZ-15/Q 15 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 N•m mA VDC Ω（Ohm） watts watts watts watts kg•cm2 rpm Kg With base HZ-0.3J/Q 0.3 390 24 62 200 200 120 35 1.8×10-1 25000 1.65 HZ-0.5J/Q 0.5 390 24 62 400 400 120 35 1.8×10-1 25000 1.65 HZ-1J/Q 1 400 24 60 800 800 320 80 1.1×10-0 25000 2.1 HZ-2J/Q 2 315 24 76 1000 800 460 115 3.2×10-0 25000 3.8 HZ-3J/Q 3 750 24 32 1300 1100 680 165 6.8×10-0 20000 5.7 HZ-5J/Q 5 750 24 32 2300 2000 1000 200 1.3×101 15000 11 HZ-6J/Q 6 750 24 32 2300 2000 1000 200 1.4×101 15000 11 HZ-10J/Q 10 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 HZ-12J/Q 12 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 HZ-15J/Q 15 1200 24 20 2800 2500 1200 350 6.2×101 10000 21.8 HZ-24J/Q 24 1600 24 15 5300 3000 2000 450 1.24×102 10000 44 HZ-30J/Q 30 1600 24 15 5300 3000 2000 450 1.24×102 10000 44 HZ-40J/Q 40 1600 24 15 7000 3200 4000 450 7.85×102 4000 65 HZ-50J/Q 50 1600 24 15 7000 3200 4000 450 7.85×102 4000 65 HZ-100J/Q 100 1600 24 15 8500 3500 4300 500 1.28×103 3000 120 【Refresh】【Favorites】【Print】 【Close】Previous：HZ-J/Q Base type air cooling hysteresis brake Next：HZ-C Type right output shaft hysteresis brake
