| 0.5N.m high-speed low-torque micro oil pump test system, shipped to Tianjin |
| Hits：5810 AddTime：2022/3/21 13:56:56 |

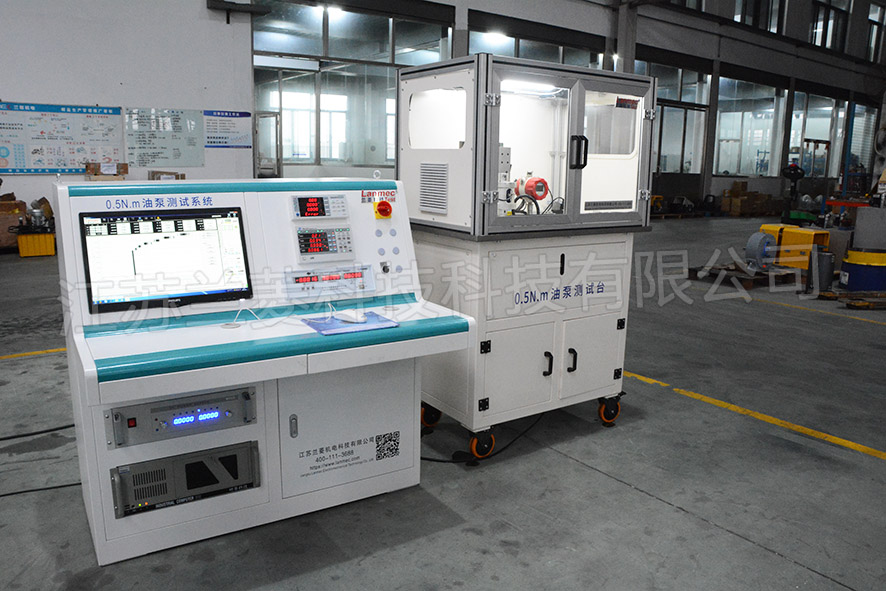

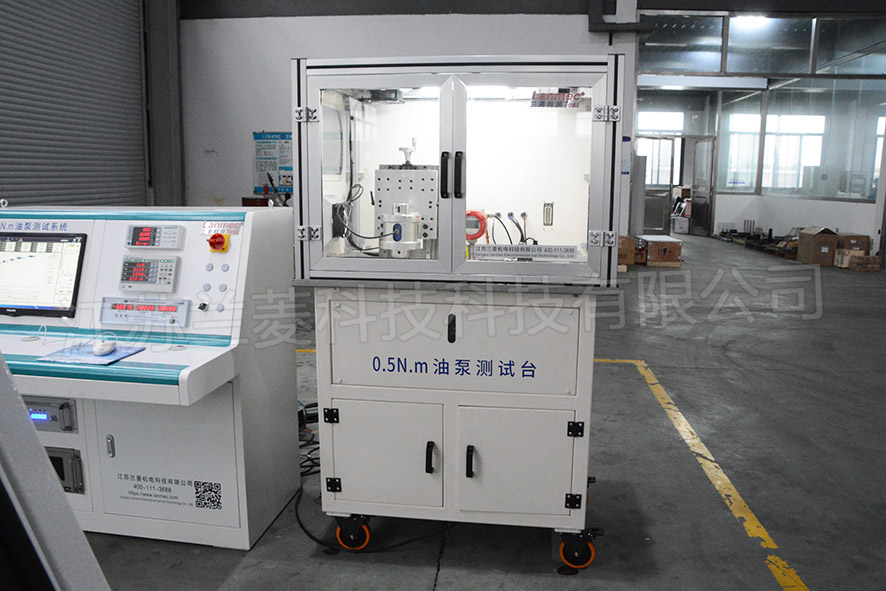

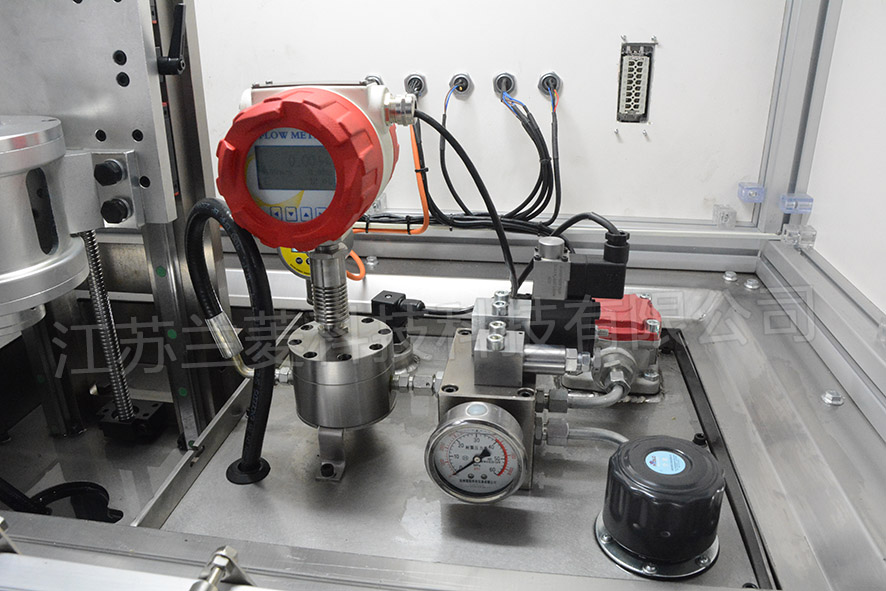

| This high-pressure, high-speed, ultra-small torque oil pump test bench is characterized by high rotational speed, up to 5000 rpm, torque as small as 0.5Nm, 10 liters per minute, 40 MPa, and oil temperature of 80 °C. In view of this feature, the testing requirements of conventional products are much more difficult, and improvement in all aspects needs to be considered, so as to achieve a reasonable product mix and meet the customer's testing requirements. The functions of this type of test bench are relatively comprehensive. The imported servo hydraulic system controls the oil pump outlet pressure and oil temperature, the torque and speed sensor measures in real time, and the closed working space can measure the current, voltage, power factor, and electric power of the oil pump motor in real time; the oil pump input torque, rotational speed and input power; flow rate, pressure and hydraulic output power of oil pump output; can display motor efficiency, oil pump efficiency, motor + oil pump general bearing efficiency; real-time generation of curves and reports for various data, save and print them; With over-limit alarm shutdown function. The test bench can also carry out the simulated working condition test (limit test, damage test, etc.) of the oil pump and the durability test to test the service life, which is a sharp tool for product development or quality improvement. Power test, Lanmec is the first choice; Lanmec technology will help you take off!
|
